Parisi Linfa PN770 Rimless Floor Mount Package with Quasar Push Panel Fucile

Pan, Cistern and Push Panel — Matched and Ready to Install

The Parisi Linfa PN770 package with Quasar Fucile brings together three confirmed-compatible components: the Linfa PN770 rimless floor-mount pan, the Incasso PA310 front-flush concealed cistern, and the Quasar mechanical push panel. The push panel is supplied in Fucile — the dark, cool-toned gunmetal finish currently on display in our Mascot showroom — but can be swapped to Brushed Nickel or Brushed Brass at no extra cost if it better suits your tapware or accessories.

Why the Incasso PA310 Cistern Matters

The PA310 is not a standard in-wall cistern. Its flush pipe is adjustable ±20mm after the wall has been closed — which is a practical advantage in renovations or new builds where the finished floor height isn’t confirmed until late in the project. Rather than having to open the wall to correct a misaligned flush connection, the pipe adjusts from the front post-installation.

The PA310 also lets you tune the flow rate after installation. This matters specifically with rimless pans — without a rim to break the water before it enters the bowl, a flush that’s too forceful can cause splash. Being able to dial the flow rate back without opening the wall is a detail that experienced plumbers appreciate. The flush pipe is a single piece, which removes a potential leak point compared to multi-section alternatives.

Inlet connection is top G½” external. Cistern dimensions are 418mm (W) × 902mm (H) × 85mm (D).

The Linfa PN770 Pan

The PN770 is a rimless floor-mount pan — the same pan used across the Linfa in-wall package range. Rimless means no internal ledge for bacteria to accumulate behind; each flush covers the full bowl surface. Pan dimensions are 560mm (L) × 365mm (W) × 443mm (H). The included PN0031 connector gives you universal P or S trap compatibility: S trap set-out 55–115mm, P trap 185mm from FFL. Back inlet sits at 350mm from FFL.

The Quasar Push Panel

The Quasar is a slimline mechanical push panel — 236mm wide × 152mm high × just 8mm deep — designed specifically for Incasso cisterns. The buttons have a physical, tactile press rather than a soft-touch mechanism. The panel is currently on display in Fucile at our Mascot showroom if you’d like to see the finish and feel the action in person before ordering.

What’s Included

• Pan: Parisi Linfa PN770 rimless floor-mount toilet pan
• Cistern: Parisi Incasso PA310 front-flush concealed cistern with adjustable flush pipe

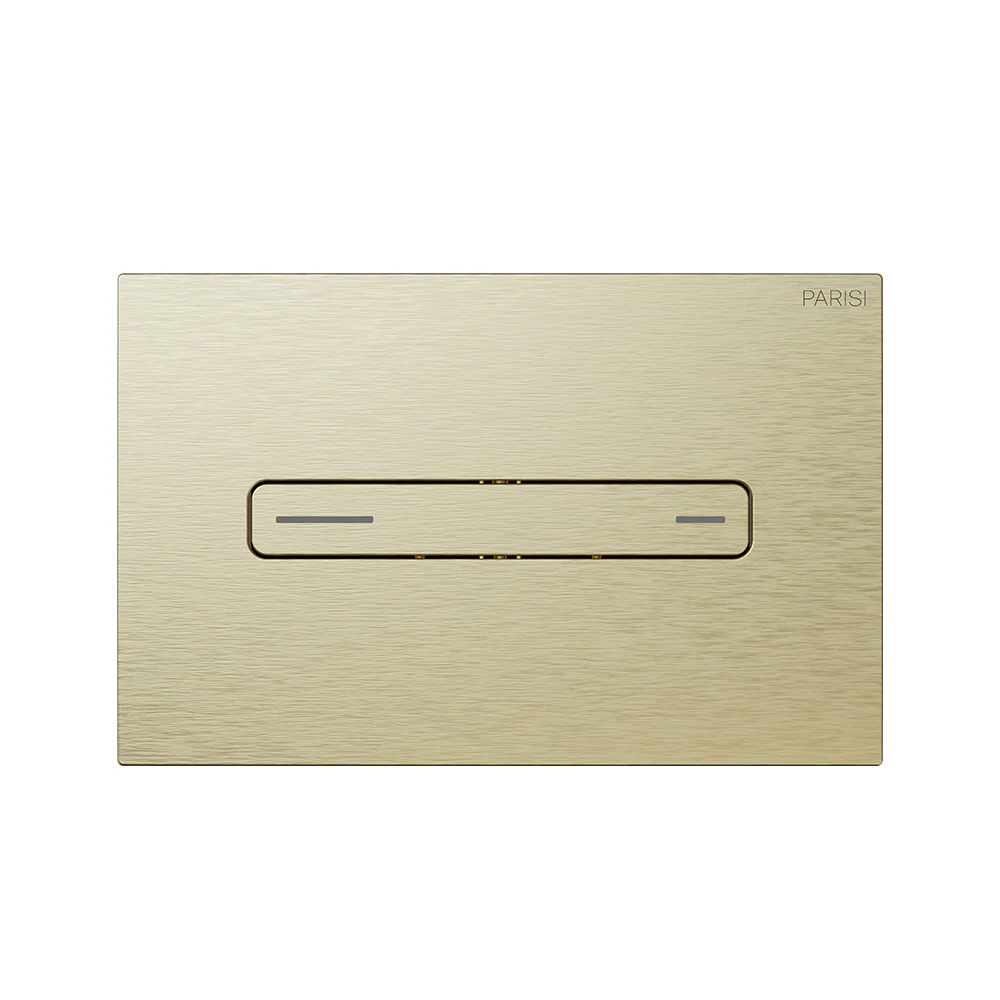

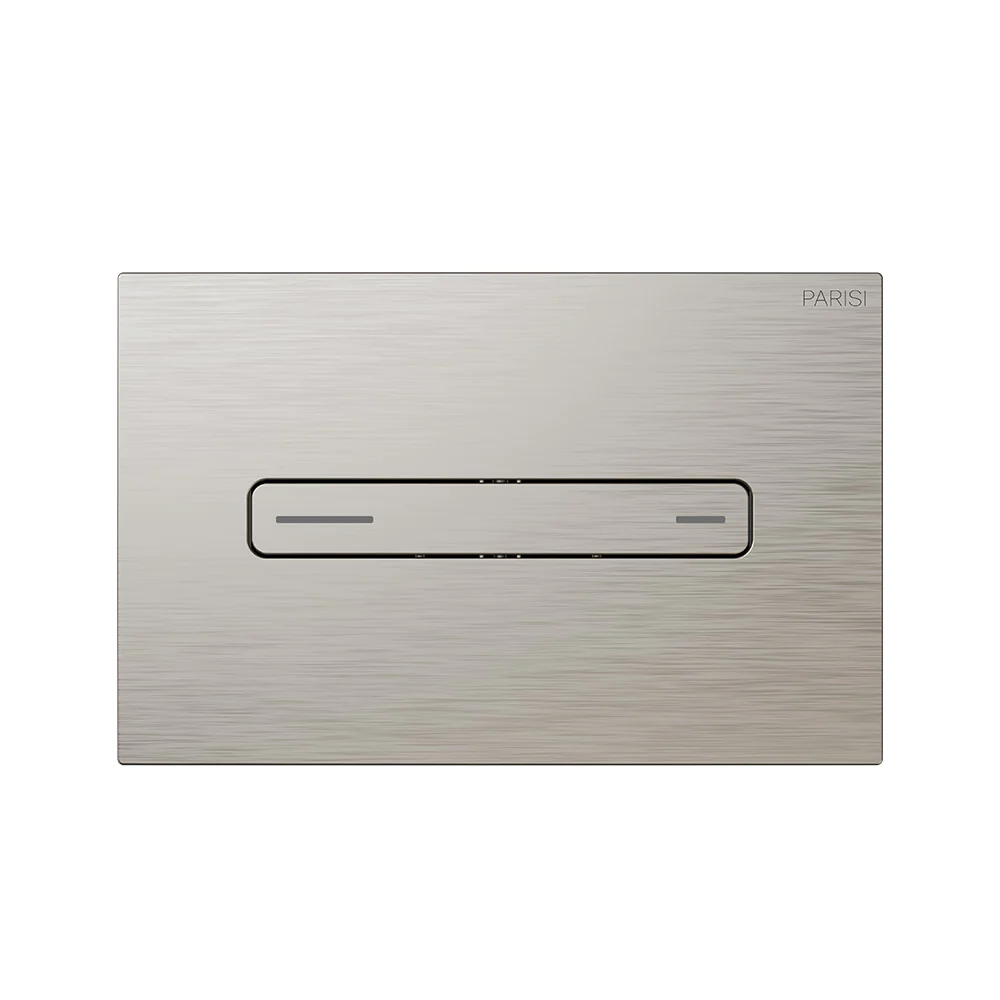

• Push panel: Parisi Quasar PA403.50 in Fucile — Brushed Nickel (PA403.41) or Brushed Brass (PA403.46) available at same price
• Connector: PN0031 universal trap connector (included)

Key Specifications

• WELS Rating: 4 stars — 3L / 4.5L dual flush
• WELS Registration: L07822
• Pan dimensions: 560mm (L) × 365mm (W) × 443mm (H)

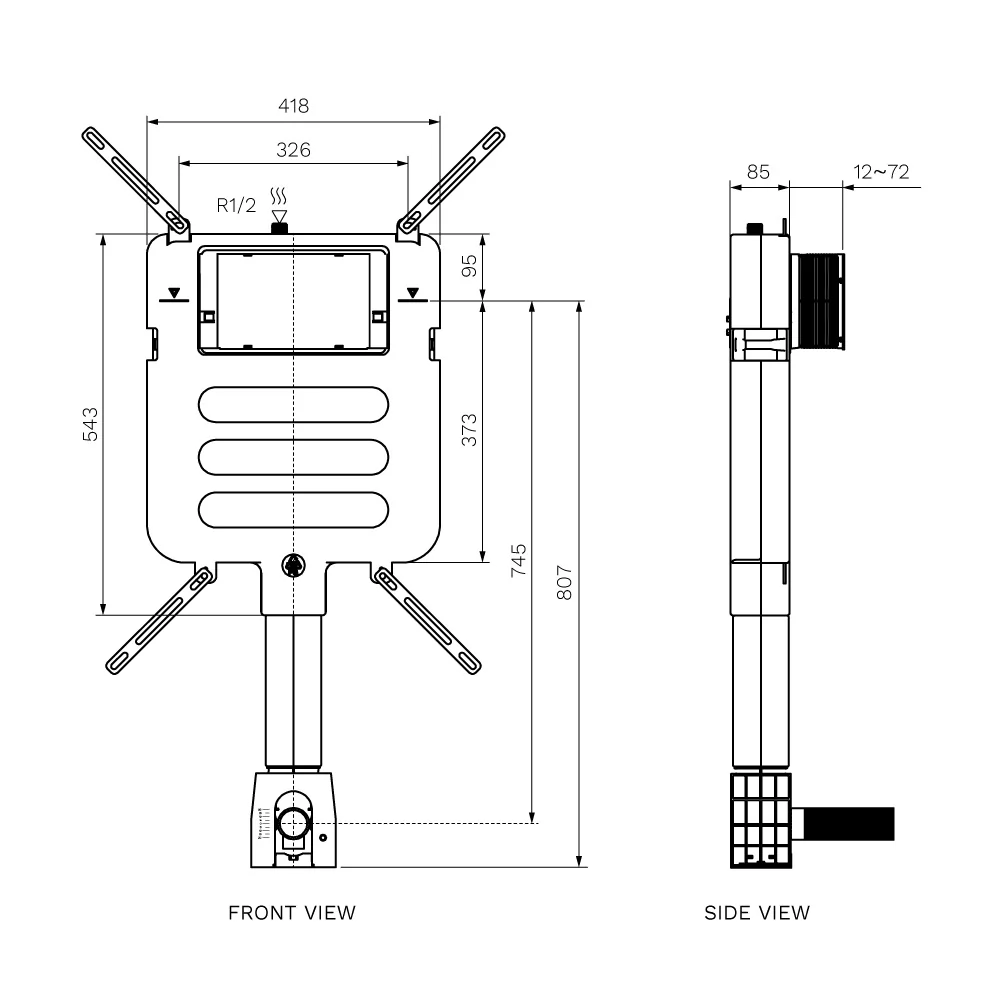

• Cistern dimensions: 418mm (W) × 902mm (H) × 85mm (D)
• Push panel dimensions: 236mm (W) × 152mm (H) × 8mm (D)
• Cistern inlet: Top G½” external
• S Trap set out: 55–115mm (PN0031 connector included)
• P Trap height from FFL: 185mm
• Back inlet height from FFL: 350mm
• Package SKU: PN770 + PA310 + PA403.50

The Quasar push panel is on display in our Mascot showroom at 1263 Botany Road. If you’re unsure about rough-in dimensions, flush pipe height, or finish matching, our team can help — call 02 9550 4628 or email us before ordering.

Browse the full in-wall toilet packages range, view all Parisi products, see the Quasar push panel in all finishes, or read more about the Incasso PA310 cistern.
